Nozzle.  A nozzle must maintain the fuel

pressure to yield a nominal 6.0 gal/hr (0.378 L/
min) fuel flow. A Monarch-manufactured 80

°

PL (hollow cone) nozzle nominally rated at
6.0 gal/hr at 100 lb/in

2

(0.71 MPa) delivers a

proper spray pattern.

(ii)

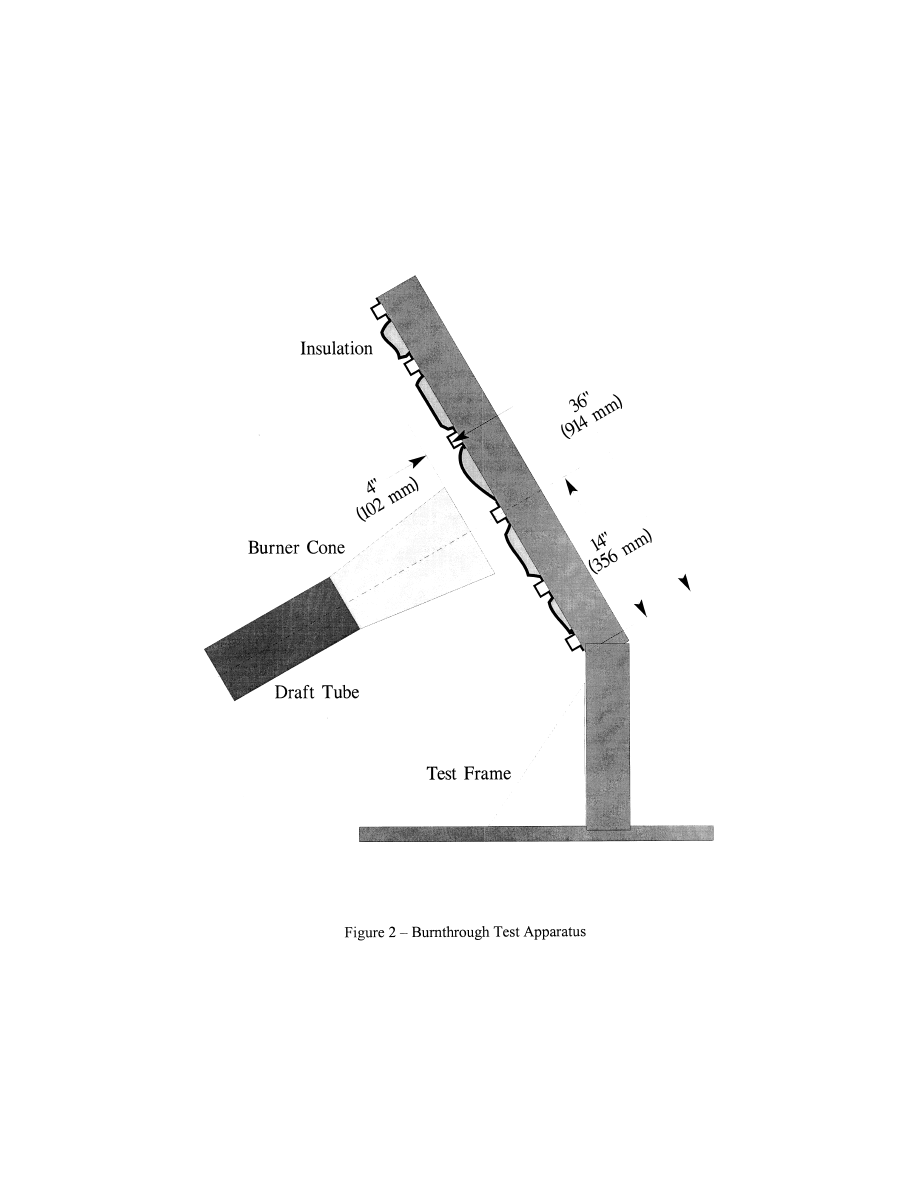

Fuel Rail. The fuel rail must be ad-

justed to position the fuel nozzle at a depth
of 0.3125 inch (8 mm) from the end plane of
the exit stator, which must be mounted in
the end of the draft tube.

(iii)

Internal Stator. The internal stator, lo-

cated in the middle of the draft tube, must
