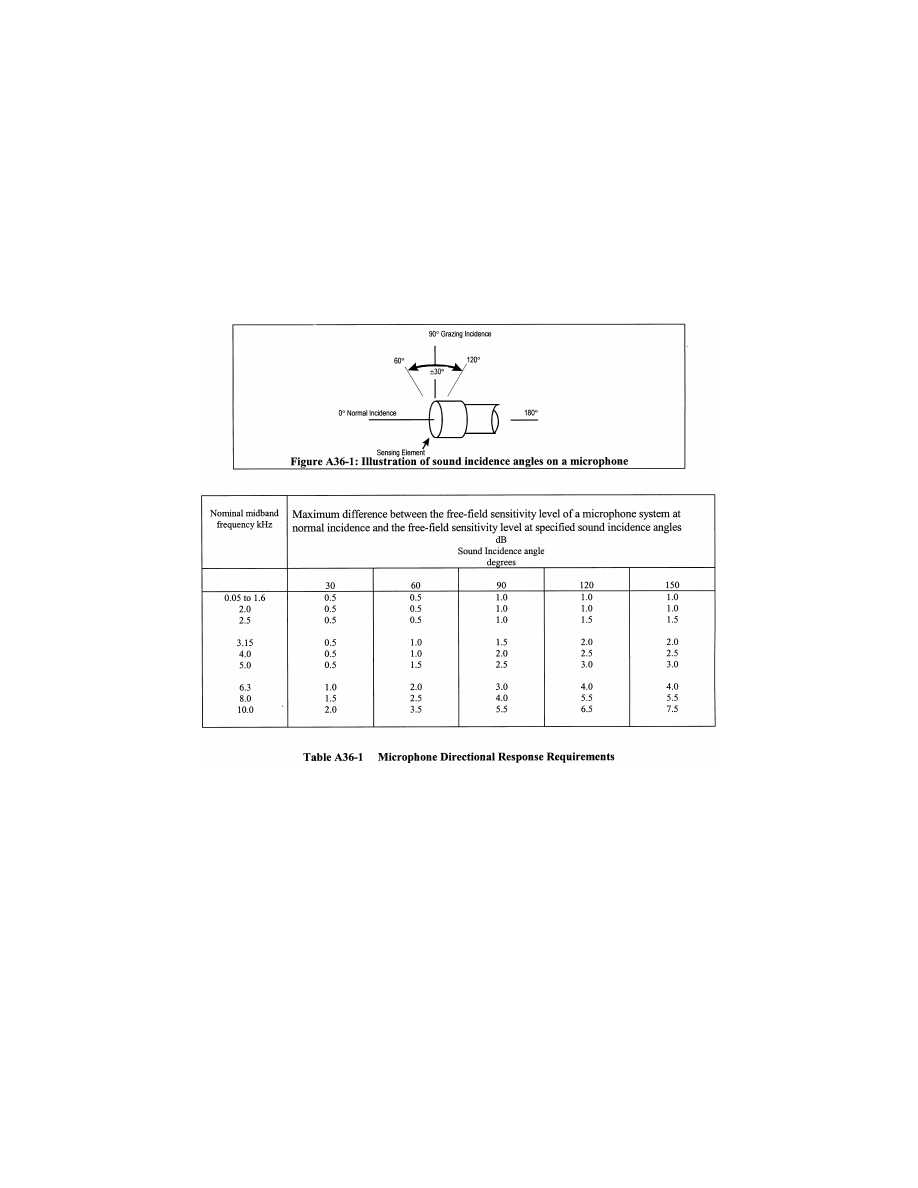

differences at sound incidence angles be-
tween any two adjacent sound incidence an-

gles in Table A36–1 must not exceed the tol-
erance limit for the greater angle.

A36.3.6

Recording and reproducing systems.

A36.3.6.1 A recording and reproducing sys-

tem, such as a digital or analog magnetic
tape recorder, a computer-based system or
other permanent data storage device, must
be used to store sound pressure signals for
subsequent analysis. The sound produced by
the aircraft must be recorded in such a way
that a record of the complete acoustical sig-
nal is retained. The recording and reproduc-
ing systems must meet the specifications in
sections A36.3.6.2 to A36.3.6.9 at the recording
speeds and/or data sampling rates used for
the noise certification tests. Conformance
must be demonstrated for the frequency
bandwidths and recording channels selected
for the tests.

A36.3.6.2 The recording and reproducing

systems must be calibrated as described in
section A36.3.9.

(a) For aircraft noise signals for which the

high frequency spectral levels decrease rap-

idly with increasing frequency, appropriate
pre-emphasis and complementary de-empha-
sis networks may be included in the meas-
urement system. If pre-emphasis is included,
over the range of nominal one-third octave
midband frequencies from 800 Hz to 10 kHz
inclusive, the electrical gain provided by the
pre-emphasis network must not exceed 20 dB
relative to the gain at 800 Hz.

A36.3.6.3 For steady sinusoidal electrical

signals applied to the input of the entire
measurement system including all parts of
the microphone system except the micro-
phone at a selected signal level within 5 dB
of that corresponding to the calibration
sound pressure level on the reference level
range, the time-average signal level indi-
cated by the readout device at any one-third
octave nominal midband frequency from 50
Hz to 10 kHz inclusive must be within

±

1.5 dB

of that at the calibration check frequency.
The frequency response of a measurement
