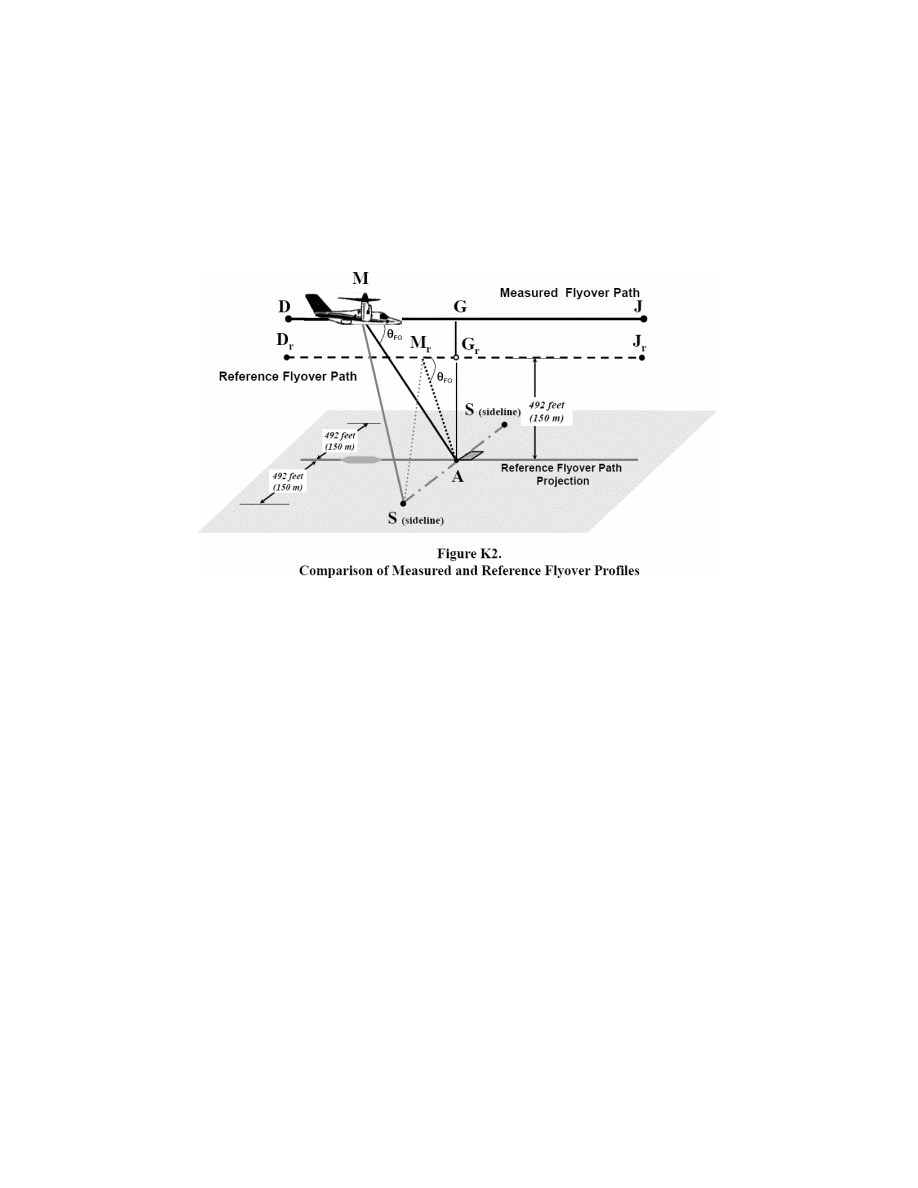

(2) Two sideline noise measurement points,

designated as S

(

sideline

)

, are located on the

ground perpendicular to and symmetrically
stationed at 492 feet (150 m) on each side of
the flyover reference flight path. The meas-
urement points bisect the centerline flight
path reference point A.

(c)

Approach reference noise measurement

points—

As shown in Figure K3 below:
(1) The centerline noise measurement

flight path reference point, designated A, is
located on the ground 394 feet (120 m)
vertically below the reference approach

flight path. The measurement point is de-
fined by the approach reference procedure in
section K6.4 of this appendix. On level
ground, the measurement point corresponds
to a position 3,740 feet (1,140 m) from the
intersection of the 6.0 degree approach path
with the ground plane;

(2) Two sideline noise measurement points,

designated as S(starboard) and S(port), are
located on the ground perpendicular to and
symmetrically stationed at 492 feet (150 m)
on each side of the approach reference flight
path. The measurement points bisect the
centerline flight path reference point A.
