12/10/15                                                                                                                   AIM

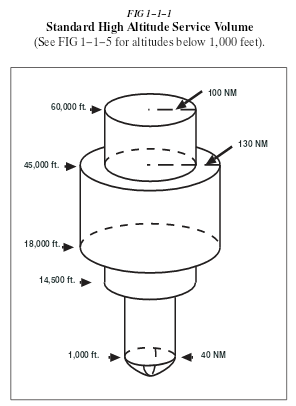

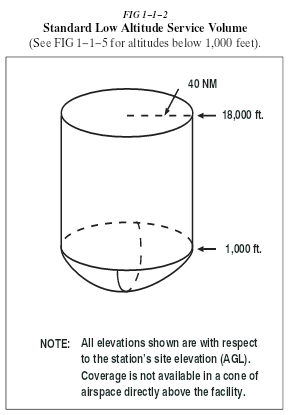

                           FIG 1-1-1                                                          FIG 1-1-2
      Standard High Altitude Service Volume                                 Standard Low Altitude Service Volume
    (See FIG 1-1-5 for altitudes below 1,000 feet).                      (See FIG 1-1-5 for altitudes below 1,000 feet).


                                                                                                          40 NM
                                          100 NM
         60,000 ft.
                                                                                                                  18,000 ft.

                                                   130 NM

  45,000 ft.




  18,000 ft.                                                                                                      1,000 ft.

      14,500 ft.




                                                                           NOTE: All elevations shown are with respect
               1,000 ft.                 40 NM                                   to the station's site elevation (AGL).
                                                                                 Coverage is not available in a cone of
                                                                                 airspace directly above the facility.

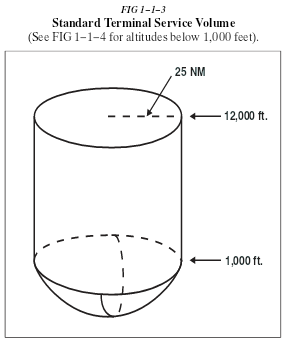

                                                            FIG 1-1-3
                                            Standard Terminal Service Volume
                                       (See FIG 1-1-4 for altitudes below 1,000 feet).

                                                                        25 NM


                                                                                 12,000 ft.




                                                                                 1,000 ft.




Navigation Aids                                                                                                          1-1-5
